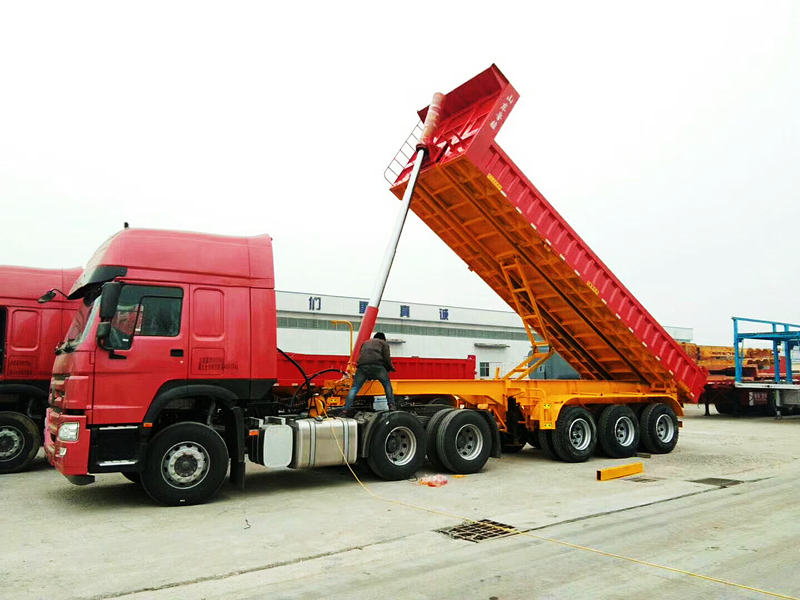

Product Description
Main Dimensions | |
Dimension | 11280*2495*3970mm ( external ) 10500*2300*1700mm (internal) |
Tare weight | About 15600KGS |
Total Volume（m3） | 37 m³ or less than 80tons |
Side wall thickness（mm） | 6mm Q235 steel |
Bottom plate thickness(mm) | 8mm /Q235 steel |
Lifting system | Hyva hydraulic lifting cylinder |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA/HUAJING brand 16tons per axles |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By bulk cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
Service
Factory Price
We are the direct factory for all kinds of good quality dumper trailer types with competitive price.
Customization
We have many experienced designers, according to your need to develop the most reasonable design and meet your customized needs.
Strict Quality Control
All semi trailers are inspected by our quality control department before shipped out.
Warranty
Our company promise one-year warranty period. You will get charge free accessories, if any damage of the accessories under normal use. The free accessories include axle, saddle, leaf spring, kingpin, landing gear, suspension, tire, air chamber and twist lock etc.
Leading time
Dumper trailers delivery time is around 15 days.
24/7 Customer Service
Our after-sales staff will help you solve your problems as soon as possible. If you meet any technical problem, our technical engineer will guide you through your quality issues.
