Product Description

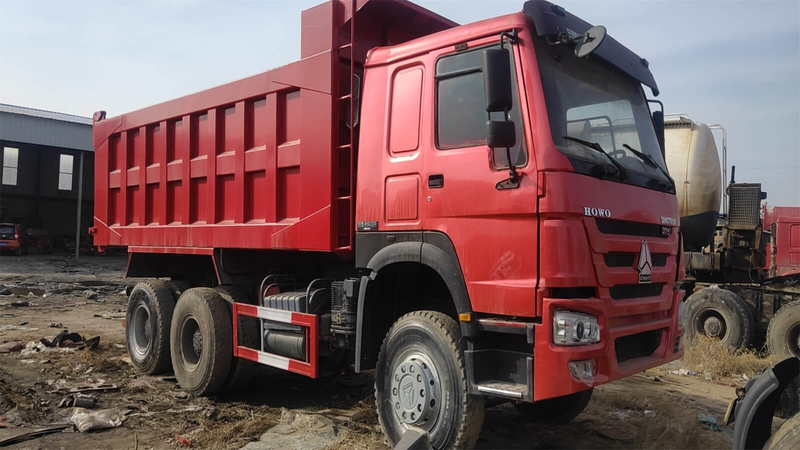

Truck brand | Sinotruk –Howo used | |
Drive wheel | 6*4 | |
Dimension(Lx W xH) | 10350x2496x3386 | |
Cargo body size (L*W*H, mm) | 7000x2300x1400 | |
Cargo body thickness(mm) | Bottom:8mm, side:6mm, | |
Lift type of carriage | Front lifting | |
Curb weight(kg) | 12290 | |
Loading weight(kg) | 30000 | |
Fuel tanker capacity | 300L with locking fuel cap | |
Fuel consumption(L/100km) | 36 | |
Clutch | Single-plate dry clutch φ420mm | |
Engine model
| Model | WD615, |
Horse power, max(kw/rpm) | 375HP,247/2200 | |
Emission standard | EURO II or EURO III | |
Transmission | Model | HW 19710,10 forwards and 2 reverSE |
Steering system | Model | ZF8118, |
Front axle | HF9 , | |
Rear axle | HC16, | |
Tire | 12.00R20 12+1 pcs. | |
Cab | HW76 cab, (one sleeper) | |
Service
(1)Cab painting renovation, new interior;
(2)New truck body;
(3)New tires;
(4) Frame refurbished;
(5)Fully maintenance of the engine, engine oil change;
(6)Replacement of all gear oil;
(7)Circuit gas and other functions;
(8)The steering system is examined, repaired, fully maintenance and updated
(9)Gear box fully maintenance and updated;
(10)Axle maintenance and broken parts are replaced into new ones;
(11)Oil seal is completely replaced into new ones;
(12)Diesel filter/air filter/engine oil filter are completely replaced into new ones;
(13)Gear shift seat, line and gearbox cover are replaced into new ones;
(14)Battery bracket, muffler, oil tank and gas tank are all replaced to new.
Packing and Shipping
In nude,polish with water wax before shipment:
1. By 40ft/45ft/40fr container
2. By bulk /RoRo ship
3. As your requirements.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully wrap film or covered tarpaulin, which can maintain a good appearance.
