Product Description

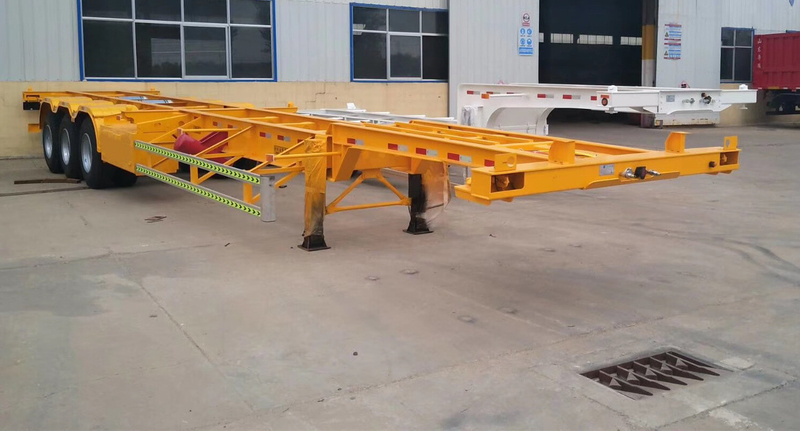

Skeleton Semi Trailer | |
Main Dimensions | |
Shape | Optional ( One Silo with V type ) |
Dimension | 12500*2450*1550mm |
Tare weight | About 5200-6000KGS |
Chassis | |
Main Beams | Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:12mm, Bottom Flange Plate:14mm, Middle Flange Plate 6mm |
Axle | 3 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension |
Landing Gear | CHINA BRAND 28T double speed |
King Pin | JOST2.00 or 3.5 -inch bolt-in king pin |
Leaf Spring | Six units 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Aluminum air brake tanker. |
Brake Chamber | T30/30 air brake chamber six double chambers , china brand |
Rim | 9.00-22.5 STEEL China Brand |
Tire | 12R22.5-22.5 Triangle brand |
Twist Locks | 12 pcs lifting type |
ABS | Optional/without |
Painting | E-coating Process |
Accessories | One standard tool box |
Shipping Terms | By 40HQ container |
Service
Factory Price
We are the direct factory for all kinds of good quality container semi trailer types with competitive price.
Customization
We have many experienced designers, according to your need to develop the most reasonable design and meet your customized needs.
Strict Quality Control
All semi trailers are inspected by our quality control department before shipped out.
Warranty
Our company promise one-year warranty period. You will get charge free accessories, if any damage of the accessories under normal use. The free accessories include axle, saddle, leaf spring, kingpin, landing gear, suspension, tire, air chamber and twist lock etc.
Leading time
Container semi trailer delivery time is around 15 days.
24/7 Customer Service
Our after-sales staff will help you solve your problems as soon as possible. If you meet any technical problem, our technical engineer will guide you through your quality issues.
